Product Description

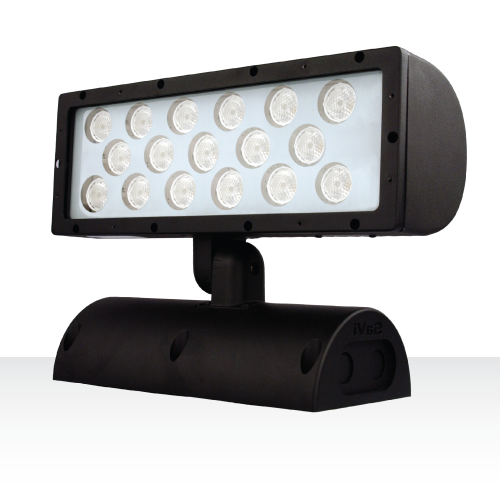

The SHO White is an architectural line voltage, Super High Output white light LED floodlight which operates off of line voltage and does not require a power supply. It is wired like any line voltage floodlight and is available in a 3000K and 6000K color temperatures. The sealed housing is constructed of cast aluminum alloy.

NO power supply required - The SHO White is the ONLY true 120V line voltage LED Flood Light in the industry (patents pending).
Product Support
SHO White Photometrics
SHO White Specification Sheet

Product Specifications
Color Temperature Warm White (3000K)
Cool White (6000K)
Light Source High Brightness LED array
Lumen Output 1394 max.
Beam Angle 10°, 30° and 45°
Fixture Spacing 20’ (6.095m)
Control System None required
Housing Material Hard wire through bottom and side conduit entrances
Wiring

Hard wire through bottom and side conduit entrances

Dimensions 13.0”(l) x 5.3” (w) x 9.5” (h)
330 mm (l) x 133 mm (w) x 241 mm (h)
Voltage 120V line voltage
Lamp Life 50,000 hours
Mounting Easy to install back mounting plate
Current 1.5A max
Wattage 68W
Operating Temperature -4°F to 104°F (-20°C to 40°C)
Ratings IP66
Listings ETL, CE

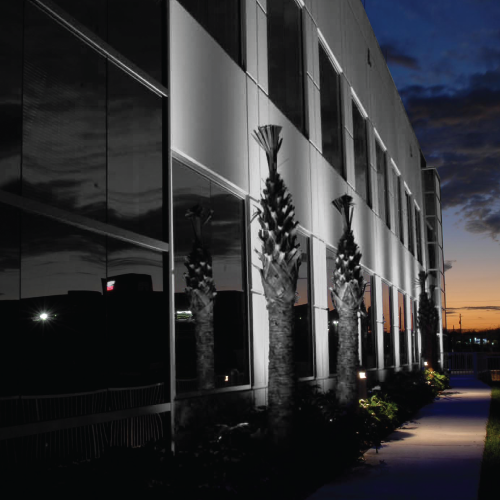

Application Images
