Product Description

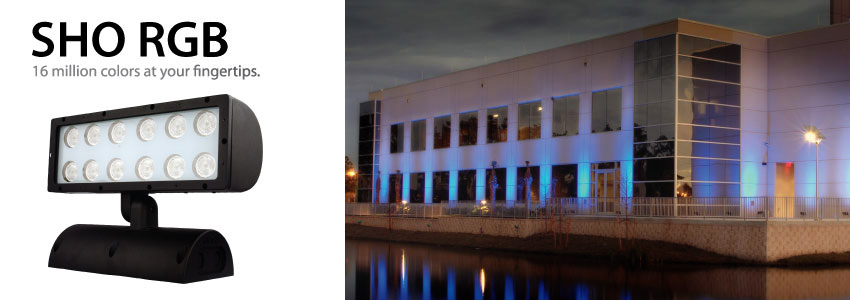

SHO RGB is an architectural line voltage, Super High Output full spectrum (RGB) LED floodlight with self contained auto switching power supply. It features the world’s brightest RGB LED lighting system utilizing patented laminated ceramic technology and a special heat sinking system for superior life. It is capable of 16 million colors and is fully controllable by DMX. Color effects include static colors, cross fading, chasing and single color rotation. The sealed housing is constructed of cast aluminum alloy.
Product Support
SHO RGB Specification Sheet
SHO RGB Manual

Product Specifications
Color Range Different brightness of red, green and blue combined to produce over 16 million colors.
Light Source LTCC-M High density RGB array
Beam Angle 45°, 30°
Fixture Spacing 20’ (6.095m)
Control System Control System DMX512
Housing Material Cast aluminum alloy
Wiring Hard wire through bottom and side conduit entrances
Dimensions

13.0” (l) x 5.3” (w) x 9.5” (h)
330 mm (l) x 133 mm (w) x 241 mm (h)

Input Voltage 90-132 / 180-264 VAC, 47-63 Hz
Mounting Easy to install back mounting plate
Current 1.5A max
Wattage 90W
IP Rating IP66
Lamp Life 50,000 hours
Operating Temperature -4°F to 104°F (-20°C to 40°C)
Listings UL, cUL, CE

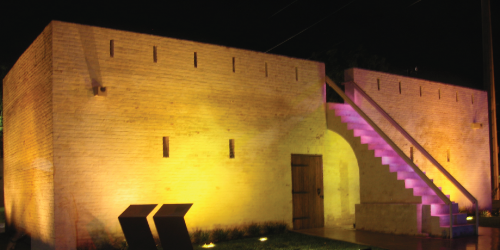

Application Images
