光鼎电子 | LiveLED 100

Product Description

The LiveLED 100 is a high performance LED - RGB color-changing, yoke mounted luminaire for indoor and outdoor venues and applications. The LiveLED 100 features an integrated power supply and DMX control system with no external components and no intake/exhaust fan. Smooth RGB color mixing and full range dimming allow for 16.7 million colors and a variety of effects including variable speed cross fades, variable speed color changes, strobes and more. The unit may be operated with DMX controllers, in master / slave synchronization with other units (with or without a controller), and in stand-alone mode with 49
pre-programmed effects.

Product Support

	LiveLED 100 Specification Sheet
	LiveLED 100 Manual

Product Specifications

Construction	Extruded, black powder coated aluminum housing and mounting yoke. Gasket sealed for all weather operation. *Available in custom finishes.
Lumen Output	1800 lumens
Optics	Parabolic optics yield up to 50% more image lumens than competitors
Voltage	85 - 265 VAC, auto sensing power supply
Wattage	101 LED Watts, 117 Total Watts
Control System	Control System DMX512 with master/slave or active control via USITT standard XLR in/out connectors (3 pin standard, 5 available upon request). 49 on board programmed effects controlled via chassis mounted rotary knobs.
Custom Finishes Available	Black Only
Optics	Narrow, Oval or Wide Flood optic options
Driver	Proprietary LED driver system driving 44 LED with 22/11/11 - RGB
Weight	13 lb (5.89 kg)
Dimensions	6.0” (l) x 10.75” (w) x 9.0” (h) 152.4 mm x 273 mm x 228.6 mm
Listings	UL / cUL listed
Ratings	IP65
Warranty	2 years
Listings	UL, cUL

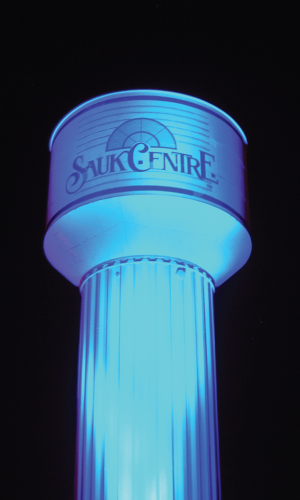

Application Images
