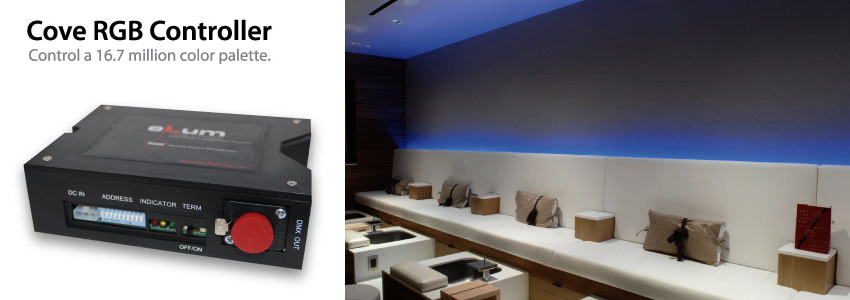

Cove RGB Controller is Ideal for Architectural, Retail, Entertainment, Specialized venues and other installations. This controller is designed to receive DMX512 protocol and to drive up to 40’ of cove strips. The SAVI Cove RGB Controller uses 24VDC power and three 0.5 - 5V analog control signals to vary the intensity of the red, green, and blue LED’s. The controller’s DMX input is fully opto-isolated and is bi-directional thus allowing the implementation of ESTA’s RDM protocol. RDM is implemented to allow remote setting of the interface’s DMX address and to gain access to the built-in effects package.
Smooth RGB color mixing and full range dimming allow for 16.7 million colors and a variety of effects including variable speed cross fades, variable speed color changes, strobes and more. The unit may be operated with DMX controllers, in master / slave synchronization, with other units (with or without a controller), and in stand-alone mode with 49 pre-programmed effects.
