Product Description

SideGlow® cable is a safe alternative to neon. It can change colors, is virtually unbreakable and is energy efficient. Suitable for interior and exterior applications, it is UV protected and has an algaecide and fungicide treated exterior jacket for maximum durability against the elements. SideGlow® cable is strong enough for amusement park rides, extreme cold as well as underwater applications. With no heat or electricity in the cable, typical lighting design restrictions are eliminated, creating a unlimited of design possibilities. P-Clips or Track tubing allow for maximum versatility and flexibility in mounting.

Product Support
SideGlow Specification Sheet


Product Specifications
Construction The SideGlow® cable is constructed of .030”/0.75mm diameter PMMA acrylic optical fibers of twisted sub-bundles twisted (sv42, sv84, sv126 only) within a flexible clear jacket. The fibers are twisted around a highly reflective PVC internal core that offers flexible stability with maximum light output.
Warranty 2 years

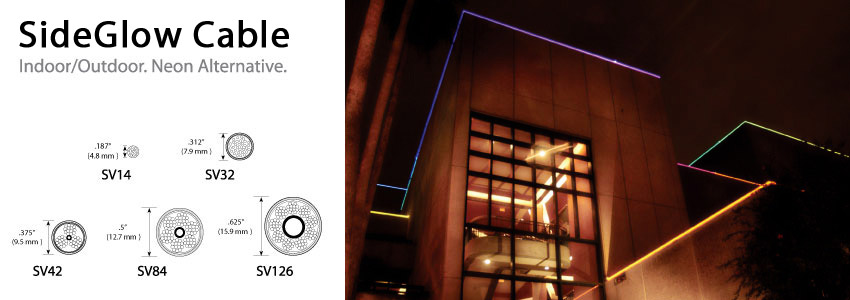

Size (The cable diameter is determined by fiber quantity)
42 fibers .375" (9.5 mm)
84 fibers
.5" (12.7 mm)
126 fibers .625" (15.9 mm)

Fiber Optic Cable
SideGlow Cable
Ultra SideGlow Cable
EndGlow Cable
EndPoint Cable
