Product Description

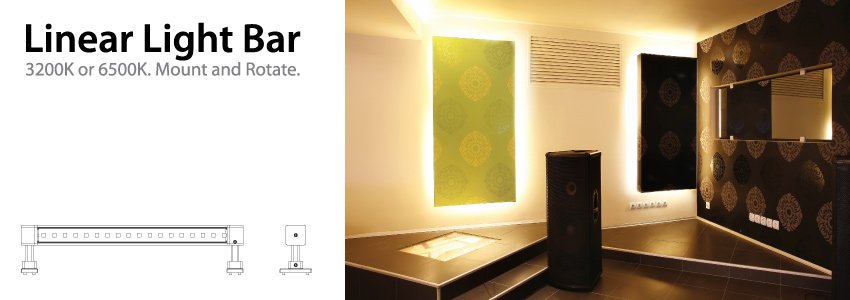

The Linear Light Bar is a high performance architectural linear lighting system for coves, wall washing and general illumination applications both direct and indirect.

The Linear Light Bar can be mounted in a variety of ways, including fixed surface mounted, direct suspended cable and wall mounted.
Product Support
Linear Light Bar Photometrics
Linear Light Bar Specification Sheet
Linear Light Bar Manual

Product Specifications
Light Source 18' Samsung High Brightness LED's per foot
Construction Extruded Aluminum housing
Lumen Output 248 Lumens per foot (3200K)
318 Lumens per foot (6500K)
Wattage 4.5 Watts per foot
Input Voltage 100-264 VAC
Output Voltage 24 VDC
Optical Angle 120° beam angle
Color Temperature

3200K or 6500K

Standard Lengths 1, 2, 3, 4 & 8ft Lengths
Adjustable Surface Mount Not available
IP Rating IP50
Warranty 2 years
Listings UL, cUL, CE

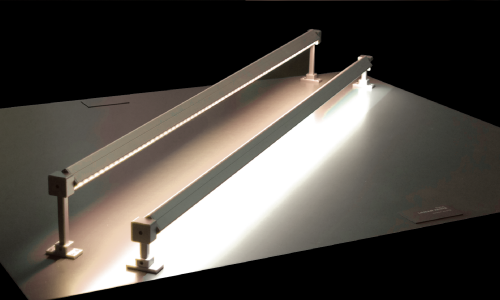

Application Images
