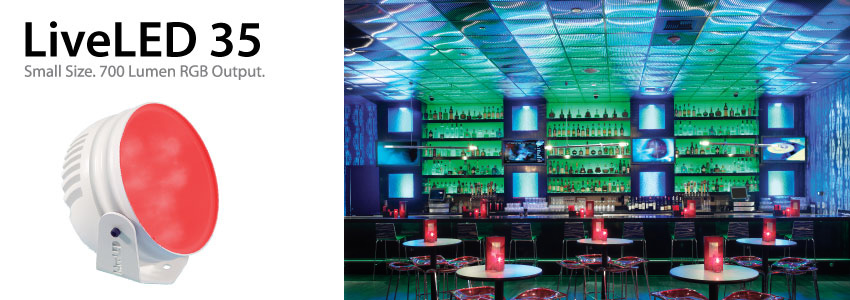

The LiveLED™ 35 is a LED - RGB color-changing, yoke mounted luminaire for indoor and outdoor venues and applications. The LiveLED 35 features an integrated off board power supply with DMX 512 control system.
Smooth RGB color mixing and full range dimming allow for 16.7 million colors and a variety of effects including variable speed cross fades, variable speed color changes, strobes and more. The unit may be operated with DMX controllers, in master / slave synchronization, with other units (with or without a controller), and in stand-alone mode with 49 pre-programmed effects.
Cast, machined and powder coated aluminum housing with integrated heat sink, formed and powder coated CRS yoke, gasket sealed available for wet locations.
Available in custom finishes.*
Lumen Output
700 lumens Optics:
Optics
26°
Voltage
Varying DC voltage via ALS DMX Controllers (see page 16) from 0 to a max of 32VDC. Cabling from controllers to fixtures in various lengths of 10, 20, 30, 40, 50, 60 to a maximum of 70’ using a 3 pair shielded cable and 6pin locking Din connectors. Cable also available in Plenum rated.
Control System
Control System DMX512
Driver
Proprietary LED driving technology driving 21 LED’s (9 red, 6 green, 6 royal blue)
Weight
3 lbs. (1.36 kg)
Dimensions
3.375” (l) x 5.0” (w) x 6.0” (h)
65.7 mm x 127.0 mm x 152.4 mm
Location Listing
Wet or Dry when back of unit is protected from direct contact to water
Operational Temperature
104º F (40º C) To prevent premature failure of the LED modules
Installation
The LiveLed 35 Unit must be installed in a space that allows for air flow
