Product Description

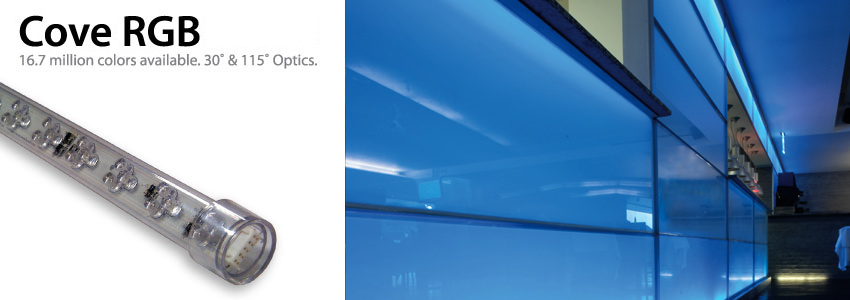

Cove RGB is a LED - RGB color changing, light strip with unique triad LED placement for even an consistent color mixing. The Cove RGB creates 16.5 million deep and very bright colors and is ideal for coves, back lighting, edge lighting, effect lighting, casinos, restaurants, nightclubs and for use in numerous entertainment applications.

Product Support

	Cove RGB Specification Sheet
	Cove RGB Manual

Product Specifications

Strip Length	1, 2, 3, 4, 8 ft
Input Voltage	24 VDC
Optic Angle	30º & 115º
Maximum Input Current	8ft = 105 mA
Maximum Power	8ft = 2.5 Watts
Maximum Strips per Output	(4) - 8ft boards, not to exceed 16 watts
LED Quantity per Strip	8ft = 24
Modulation Input Analog	0.6 - 5.0 VDC
Driver Voltage	0 - 5 VDC
Connector Power Rating	2.5 Amp
Brightness	8ft= 60 Lumens
LED Spacing	1” (25.4 mm)
Strip Width	0.65” (16.5 mm)
Rec. Wire Gauge	6 conductor, 22 AWG, shielded cable not to exceed 50’ total per run
Environmental	-20° to +50° C, 0 - 100 humidity when mounted in Polycarbonate tube with water tight end caps.
Listings	ETL, CE
