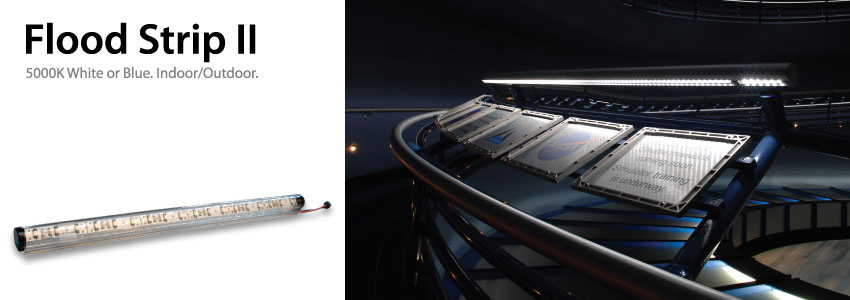

The Flood Strip II high brightness LED luminaire is designed for indirect or direct lighting, for indoor or outdoor use. Low voltage, flexible, and monochromatic, the SAVI Flood Strip has an excellent tolerance for vibrations and shock, quite different from neon and other forms of fluorescent lighting. Extremely low energy consumption and works with low voltage, thus minimizing the effects of corrosion and electrolysis.
The Flood Strip is outfitted with LED’s powered at 24VDC and has a life expectancy of up to 50,000 hours. Ideal for direct lighting under counters, steps, walk-ways, furniture, coves, kitchens, casinos, theme-parks, restaurants, bars, hotels, signage and much more. |
|
|
|
| Construction |
Clear Polycarbonate Tube 1,2, & 4 ft. in length. 0.72” (18.2mm) Max Height x 0.71” (28mm) Max Wide |
| View Angle |
120º |
| Colors |
White (5000K) and Blue
|
| Printed |
Length 12” (304mm)
No. LED’s Per Foot: 18
Spacing 0.687” (17.4mm)
|
| Power Consumption |
1.7W Per Foot |
| Track |
Aluminium Anodized - Silver Color
|
| Button Mount |
0.5” x 0.5” (12.7mm x 12.7mm) Included
|
| Environment |
For Indoor and Outdoor use.
Wet location Rated.
|
| Standard Voltage |
24VDC for White/Blue
|
| Maximum Run Distance for Power Supply |
02.024V 60w=35’ (10.6mm)
EVPS150-24 150w=88’(26.8mm)
EVPS300-24 300w=176’ (56mm) |
| LED Board Mounting Angle |
Horizontal or 45 degrees
|
| Warranty |
2 years |
| Listings |
UL, cUL, CE |
|
|
|
|
