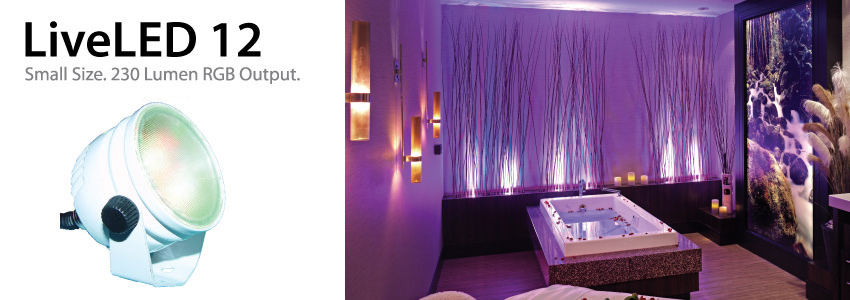

The LiveLED™ 12 is a LED - RGB color-changing, yoke mounted luminaire for indoor and outdoor venues and applications. The LiveLED 12 features an integrated off board power supply with DMX 512 control system.
Smooth RGB color mixing and full range dimming allow for 16.7 million colors and a variety of effects including variable speed cross fades, variable speed color changes, strobes and more. The unit may be operated with DMX controllers, in master / slave synchronization, with other units (with or without a controller), and in stand-alone mode with 49 pre-programmed effects. |
|
|
|
| Construction |
Cast, machined and powder coated aluminum housing with integrated heat sink, formed and powder coated CRS yoke, gasket sealed available for wet locations. This unit is also available for flush mount downlight with flange instead of yoke.
|
| Lumen Output |
230 lumens
|
| Voltage |
Varying DC voltage via ALS DMX Controllers (see page 16) from 0 to a max of 12Vdc. Cabling from controllers to Fixtures in various lengths of 10, 20, 30, 40, 50, 60 to a maximum of 70’ for the single fixture only and 10, 20, to a maximum of 30’ with all other options using a 3 pair shielded cable and 6pin locking Din connectors. Cable also available in Plenum rated.
|
| Control System |
Control System DMX512 with master/slave or active control via standard XLR connectors (3 pin standard,
5 pin available upon request)
|
| Driver |
Proprietary LED driving technology driving 7 LED’s (3 red, 2 green, 2 royal blue)
|
| Weight |
3 lbs. (1.36 kg)
|
| Dimensions |
1.7” (l) x 2.5” (w) x 3.0” (h)
43.18 mm x 63.5 mm x 76.2 mm |
| Location Listing |
Wet or Dry when back of unit is protected from direct contact to water.
|
| Operational Temperature |
Maximum 104º F (40º C). To prevent premature failure of the LED modules
|
| Installation |
The LiveLED 12 unit must be installed in a space that allows for air flow. This unit may be installed in any orientation.
|
| Warranty |
2 years
|
|
|
|
|
